UPIPPL’s range of modern machinery ensures consistent high quality of pipes, fabrications & irrigation system.
Online Drip Irrigation System
Lateral Pipe 12mm to 32mm IS: 12786
Online Dripper 2 LPH, 4 LPH, 8 LPH IS: 13487
Application Horticulture Orchards, Vegetables

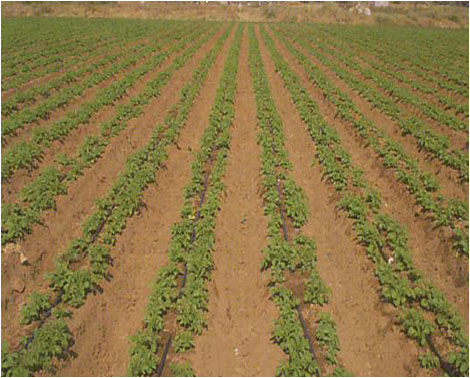

Inline Drip Irrigation System
Lateral Pipe 12mm to 32mm IS: 13488
Discharge 1 - 4 LPH
Spacing between Dripper 30 – 150 Cm
Application Vegetables, Sugarcane, Cotton, Potato & all Raw Crops
Filtration System

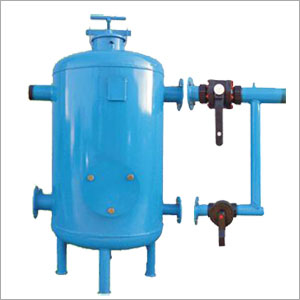

Sand Filter - IS: 14606 10-50 M³/Hr
Hydro-Cyclone Filter - IS: 14743 20-50 M³/Hr

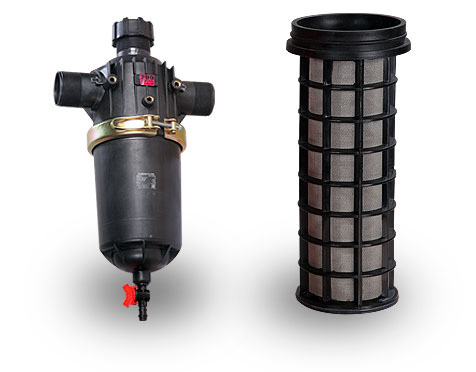

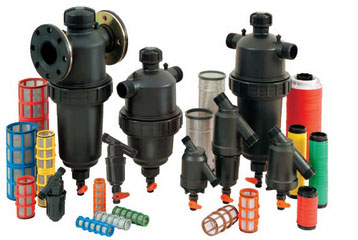

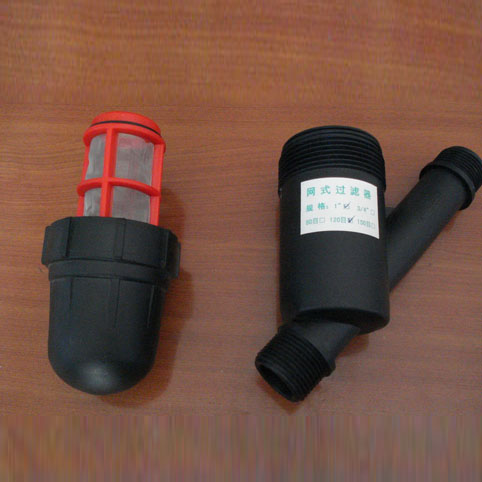

Screen Filter – IS: 12785 10-50 M³/Hrm

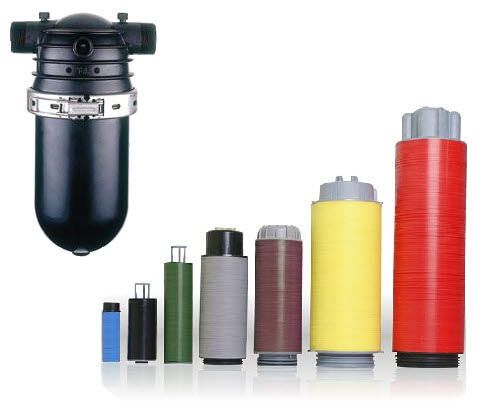

Disc Filter – IS: 12785 10-50 M³/Hr
Main / Submain Pipes
PVC Pipe – IS: 4985 (4-10 Kg/Cm²) 40-200 mm
HDPE Pipes, 2.5 – 4Kg/Cm2 40-200 mm
Fertigation Equipment
Ventury Injector Assembly – IS: 14483 ¾” – 2”

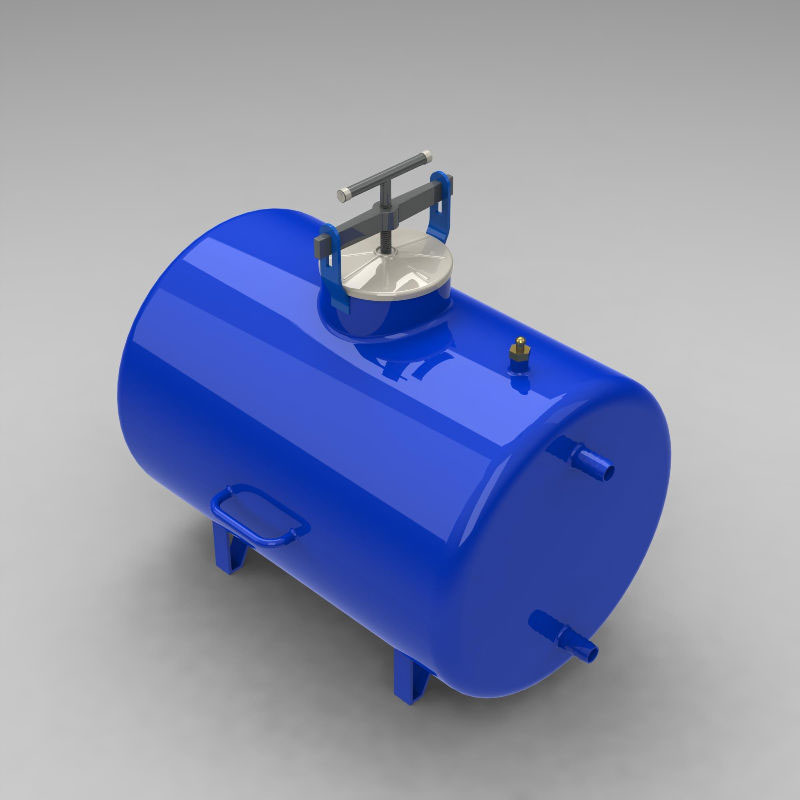

Fertilizer Tank Assembly 30 – 90 Ltrs
All other fittings & accessories are as per relevant BIS specification / of the best quality wherever standard not exist.
